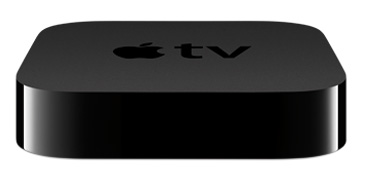

Apple TV (3rd Generation)

Essentials

Family: iOS

Codename: ?

Gestalt ID: 406

Minimum OS: Apple TV OS 5.0 (iOS)

Maximum OS: Apple TV OS 5.0.2 (iOS)

Introduced: March 2012

Processor

CPU: Apple A5 (ARM Cortex-A9, Single Core)

CPU Speed: 1 GHz

FPU: integrated

Data Bus Width: 64-bit

Address Bus Width: 32-bit

RAM Type: on-board

Onboard RAM: 512 MB

RAM slots: none

Maximum RAM: 512 MB

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 1 MB on-processor

Video

GPU: PowerVR dual-core SGX543MP2 (via A5 chip)

Max Resolution: 1080p

Video Out: HDMI

Storage

Flash Drive: 8 GB

Input/Output

USB: 1 (Micro-USB)

Audio Out: HDMI, optical TOSLINK

Networking

Ethernet: 10/100Base-T

Airport Extreme: 802.11n

Miscellaneous

Power: 6 Watts

Dimensions: 0.9" H x 3.9" W x 3.9" D

Weight: 0.6 lbs.

Notes

Though Apple technical specification list a single-core A5 chip, the Apple TV (3rd Generation) actually uses a standard dual-core A5, with one core disabled.

Introduced in March 2012, the Apple TV (3rd Generation) was primarily a feature upgrade to the Apple TV (2nd Generation). New features included 1080p video output, a faster A5 processor, and a new user interface. The price remained $99.
